Webbing Sling with sleeve

Home > Flat Webbing Sling > webbing sling with sleeve

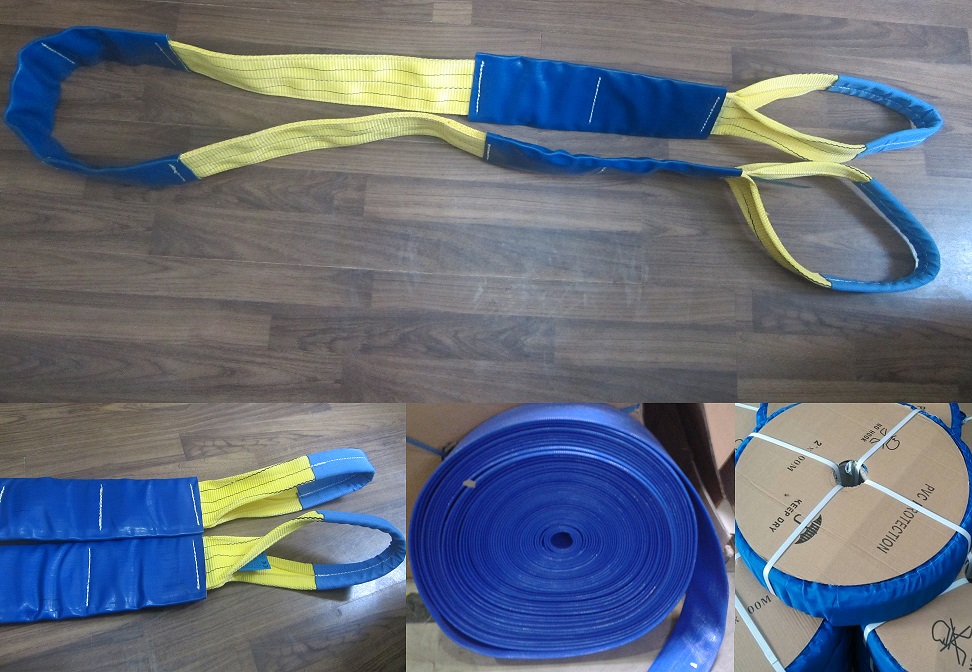

webbing sling with sleeve

Original Picture

Product Name:
webbing sling with sleeve
Model No.:

Product Abstract:

Material: Polyester, Safety Factor: 6:1 7:1 8:1, Standard: EN1492-1, Length: As required, Color: Color code

Product Description

Webbing Sling

Webbing sling is made from high quality synthetic fibre by advanced international level of weaving technology and equipment in various stitching methods. It is produced according to International standard, for color and load capacity. Webbing sling is manufactured from safety factor 4:1, 5:1, 6:1, 7:1, 8:1. webbing sling can be made in different widths and strength according to intended use.

S.F	6:1		7:1		8:1
WLL(kg)	Width	M.B.S.	Width	M.B.S.	Width		M.B.S.
1000	25/38mm	6t	30/50mm	7t	50mm	8t
2000	50mm	12t	60mm	14t	65mm	16t
3000	75mm	18t	90mm	21t	95mm	24t
4000	100mm	24t	120mm	28t	120mm	32t
5000	125mm	30t	150mm	35t	150mm	40t
6000	150mm	36t	180mm	42t	180mm	48t
8000	200mm	48t	240mm	56t	240mm	64t
10000	250mm	60t	300mm	70t	300mm	80t
Standard	ISO4878		EN14192-1		AS/NZS

Customers can choose special length base on special requirements.

Double Ply Eye&Eye Flat Webbing Sling(DEE)

Article No	Color	WLL (kg)	Width (mm)				Min Length (m)	Max Length (m)
Article No	Color	WLL (kg)	5:1	6:1		7:1	Min Length (m)	Max Length (m)
WS-DEE010	Violet	1000	25		25	30	1.1	100
WS-DEE020	Green	2000	50		50	60	1.2	100
WS-DEE30	Yellow	3000	75		75	90	1.3	100
WS-DEE040	Grey	4000	100		100	120	1.4	100
WS-DEE050	Red	5000	125		125	150	2.0	100
WS-DEE060	Brown	6000	150		150	180	2.0	100
WS-DEE080	Blue	8000	200		200	240	2.0	100
WS-DEE100	Orange	10000	250		250	300	3.0	100
