Double Ply Endless Webbing Sling

Home > Endless Webbing Sling > Double Ply Endless Webbing Sling

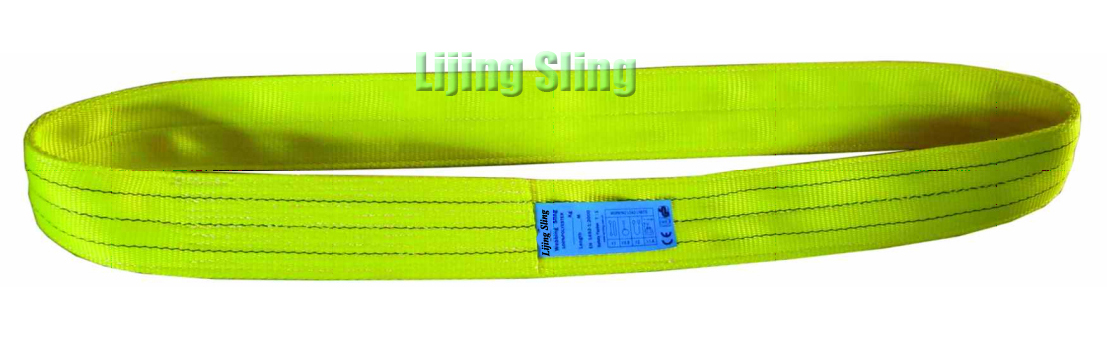

Original Picture

Product Name:
Double Ply Endless Webbing Sling
Model No.:
WS-DEN

Product Abstract:

Material: Polyester, Safety Factor: 6:1 7:1 8:1, Standard: EN1492-1, Length: As required, Color: Color code

Product Description

Webbing Sling

Webbing sling is made from high quality synthetic fibre by advanced international level of weaving technology and equipment in various stitching methods. It is produced according to International standard, for color and load capacity. Webbing sling is manufactured from safety factor 4:1, 5:1, 6:1, 7:1, 8:1. webbing sling can be made in different widths and strength according to intended use.

S.F	6:1		7:1		8:1
WLL(kg)	Width	M.B.S.	Width	M.B.S.	Width		M.B.S.
1000	25/38mm	6t	30/50mm	7t	50mm	8t
2000	50mm	12t	60mm	14t	65mm	16t
3000	75mm	18t	90mm	21t	95mm	24t
4000	100mm	24t	120mm	28t	120mm	32t
5000	125mm	30t	150mm	35t	150mm	40t
6000	150mm	36t	180mm	42t	180mm	48t
8000	200mm	48t	240mm	56t	240mm	64t
10000	250mm	60t	300mm	70t	300mm	80t
Standard	ISO4878		EN14192-1		AS/NZS

Customers can choose special length base on special requirements.

Double Ply Endless Webbing Sling (DEN)

Article No	Color	WLL (kg)	Width (mm)			Min Length (m)	Max Length (m)
Article No	Color	WLL (kg)	5:1	6:1	7:1	Min Length (m)	Max Length (m)
WS-DEN020	Violet	2000	25	25	30	0.5	100
WS-DEN040	Green	4000	50	50	60	1.0	100
WS-DEN060	Yellow	6000	75	75	90	1.0	100
WS-DEN080	Grey	8000	100	100	120	1.5	100
WS-DEN100	Red	10000	125	125	150	1.5	100
WS-DEN120	Brown	12000	150	150	180	1.5	100
WS-DEN160	Blue	16000	200	200	240	2.0	100
WS-DEN200	Orange	20000	250	250	300	2.0	100
WS-DEN240	Orange	24000	/	300	300	2.0	100
